WQ-S
Sewage pumps

Product Overview:

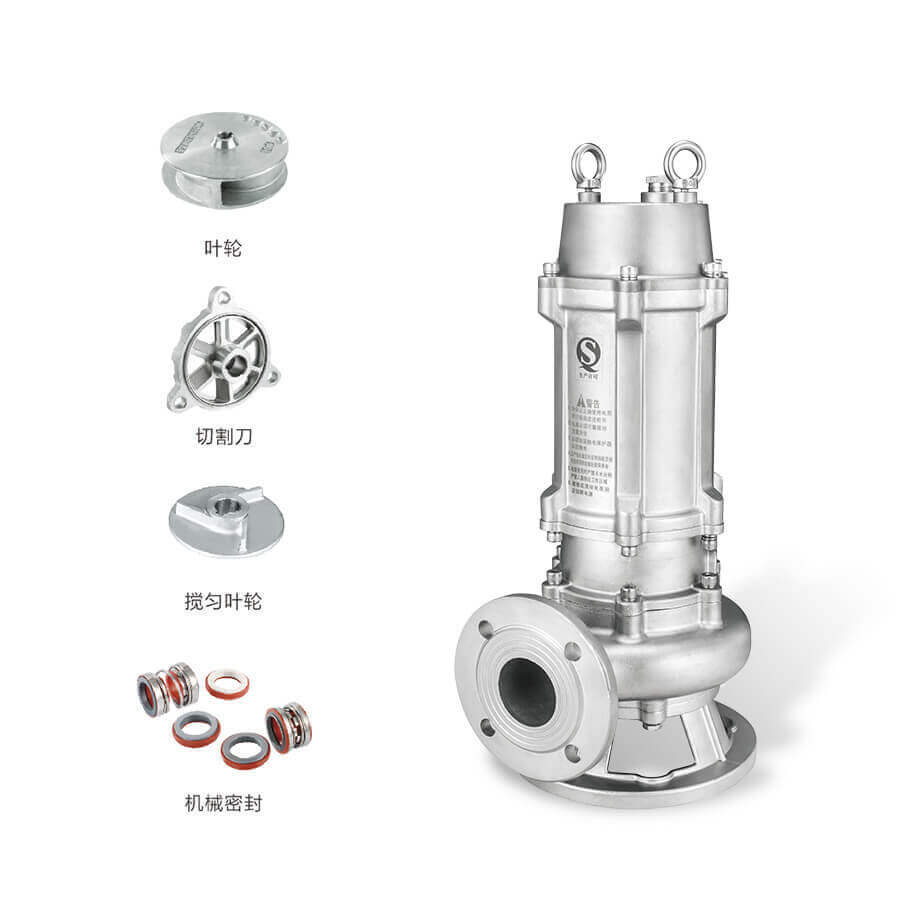

The national standard flange WQ-S all stainless steel precision casting sewage submersible pump adopts a stainless steel precision casting shell, which has the characteristics of corrosion resistance, environmental protection, high head, and large flow rate.

Product features:

1. The oil chamber adopts a fluorine rubber double end face mechanical seal, and the outer chamber adopts a single end face fluorine rubber mechanical oil seal structure, effectively reducing the problem of water ingress caused by shaft wear caused by friction between sediment and the shaft.
2. The motor adopts vacuum impregnation paint to achieve F-level insulation and is equipped with a thermal protection device, effectively extending the service life of the pump.
3. According to customer requirements, a mixing device can be equipped, which generates extremely strong mixing force with the rotation of the motor shaft, stirring the sediment in the sewage tank into suspended solids and discharging them. It can also be equipped with a cutting device, which can discharge debris such as long fibers, plastics, paper bags, and straw from sewage.
4. We can customize anti-corrosion cables, PTFE machine seals, and high-temperature resistant motors according to customer specific requirements. (Solve usage environments with liquid temperature ≤ 100 ℃).

Main application:

Suitable for construction buildings, hospitals, residential communities, municipal engineering, road traffic and construction, chemical electroplating, factory sewage, aquaculture, pharmaceuticals, beverages, seawater, solid particles contained in general corrosive media, long fiber wastewater, and sewage.

Conditions of use:

1. Based on the center of the impeller, the depth of submergence into the water shall not exceed 5m;
2. The temperature of the conveying medium shall not exceed+40 ℃;
3. The pH value of the conveying medium is 304 (4-10), 316 (2-13);
4. The kinematic viscosity of the conveying medium is 7x10 ^ -7~23x 10 ^ -6 ㎡/s.

Contact Us Back to list

Model and size

Model	Rated flow rate (m³/h)	Rated head (m)	Power (KW)	voltage (V)	speed (r/min)	Outline size (mm)								G. W (kg)	L×W×H (cm)
Model	Rated flow rate (m³/h)	Rated head (m)	Power (KW)	voltage (V)	speed (r/min)	H	H1	H2	D2	B2	B3	L5	d	G. W (kg)	L×W×H (cm)
50WQ-S15-15-1.5	15	15	1.5	220/380	2850	540	370	120	215	260	355	225	50	31.5	58×22×26
65WQ-S25-7-1.5	25	7	1.5	220/380	2850	535	365	120	215	245	350	217	65	32	58×22×26
50WQ-S15-20-2.2	15	20	2.2	380	2850	555	385	120	215	245	340	215	50	36.5	58×22×26
65WQ-S25-15-2.2	25	15	2.2	380	2850	555	385	120	215	245	350	217	65	38.5	58×22×26
80WQ-S40-9-2.2	40	9	2.2	380	2850	555	385	120	215	263	388	231	80	40.5	58×22×26
50WQ-S15-25-3	15	25	3	380	2850	605	435	130	230	255	350	225	50	43	63×24×28
65WQ-S25-20-3	25	20	3	380	2850	605	435	130	230	265	370	227	65	44	63×24×28
80WQ-S40-15-3	40	15	3	380	2850	605	435	130	230	275	400	245	80	45	63×24×28
50WQ-S15-35-4	15	35	4	380	2850	670	480	155	270	330	425	260	50	55.5	72×28×33
65WQ-S25-30-4	25	30	4	380	2850	670	480	155	270	330	435	262	65	57.5	72×28×33
80WQ-S40-18-4	40	18	4	380	2850	670	480	155	270	330	455	280	80	61.5	72×28×33
100WQ-S50-15-4	50	15	4	380	2850	680	490	160	270	330	480	302	100	64.5	72×28×33
50WQ-S25-32-5.5	25	32	5.5	380	2850	730	530	155	270	330	425	260	50	66.5	72×28×33
65WQ-S30-25-5.5	30	25	5.5	380	2850	730	530	155	270	330	435	260	65	68	80×28×33
80WQ-S50-18-5.5	50	18	5.5	380	2850	730	530	155	270	330	455	280	80	73	80×28×33
100WQ-S80-10-5.5	80	10	5.5	380	2850	740	540	160	270	330	480	302	100	76	80×28×33
50WQ-S20-40-7.5	20	40	7.5	380	2850	810	640	200	315	325	410	258	50	91	86×35×40
65WQ-S30-32-7.5	30	32	7.5	380	2850	810	640	200	315	325	420	260	65	93	86×35×40
80WQ-S45-22-7.5	45	22	7.5	380	2850	820	650	210	315	360	485	315	80	95	86×35×40
100WQ-S80-15-7.5	80	15	7.5	380	2850	820	650	210	315	360	510	335	100	96	86×35×40
150WQ-S100-10-7.5	100	10	7.5	380	2850	820	650	215	315	395	590	360	150	98	86×35×40
100WQ-S100-25-11	100	25	11	380	1450	950	740	200	410	520	670	430	100	198	57×62×116
150WQ-S180-11-11	180	11	11	380	1450	980	770	235	410	560	755	465	150	200	57×62×116
200WQ-S300-7-11	300	7	11	380	1450	980	770	235	410	570	870	660	200	219	57×62×116
100WQ-S100-30-15	100	30	15	380	1450	990	780	200	410	520	670	430	100	213	57×62×120
150WQ-S180-15-15	180	15	15	380	1450	1020	810	235	410	560	755	465	150	215	57×62×120
200WQ-S250-11-15	250	11	15	380	1450	1020	810	235	410	570	870	660	200	234	57×62×123
100WQ-S100-35-18.5	100	35	18.5	380	1450	1020	800	200	410	520	670	430	100	240	57×62×123
150WQ-S180-20-18.5	180	20	18.5	380	1450	1050	830	235	410	560	755	465	150	242	57×62×123
200WQ-S250-15-18.5	250	15	18.5	380	1450	1050	830	235	410	570	870	660	200	261	57×62×123
100WQ-S100-40-22	100	40	22	380	1450	1020	800	200	410	520	670	430	100	250	57×62×123
150WQ-S200-22-22	200	22	22	380	1450	1050	830	235	410	560	755	465	150	252	57×62×123
200WQ-S300-16-22	300	16	22	380	1450	1050	830	235	410	570	870	660	200	271	57×62×123
