Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of Φ 10mm.
5m maximum immersion depth
Liquid temperature up to 35°C
Max.imum ambient temperature 40°C
Pump body: Cast iron
Pump body: Cast iron
Suction filter: AISI304 SS
Impeller: Cast iron
Motor shaft: AISI304 SS
Mechanical seal: SIC-SIC/Ceramic-Graphite
Cable: 6m power cable with plug
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP68
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
| Model | POWER kW |
Q.Max (l/min) |
H.Max (m) |
Outlet (in) |
Inlet/Qutlet (mm) |

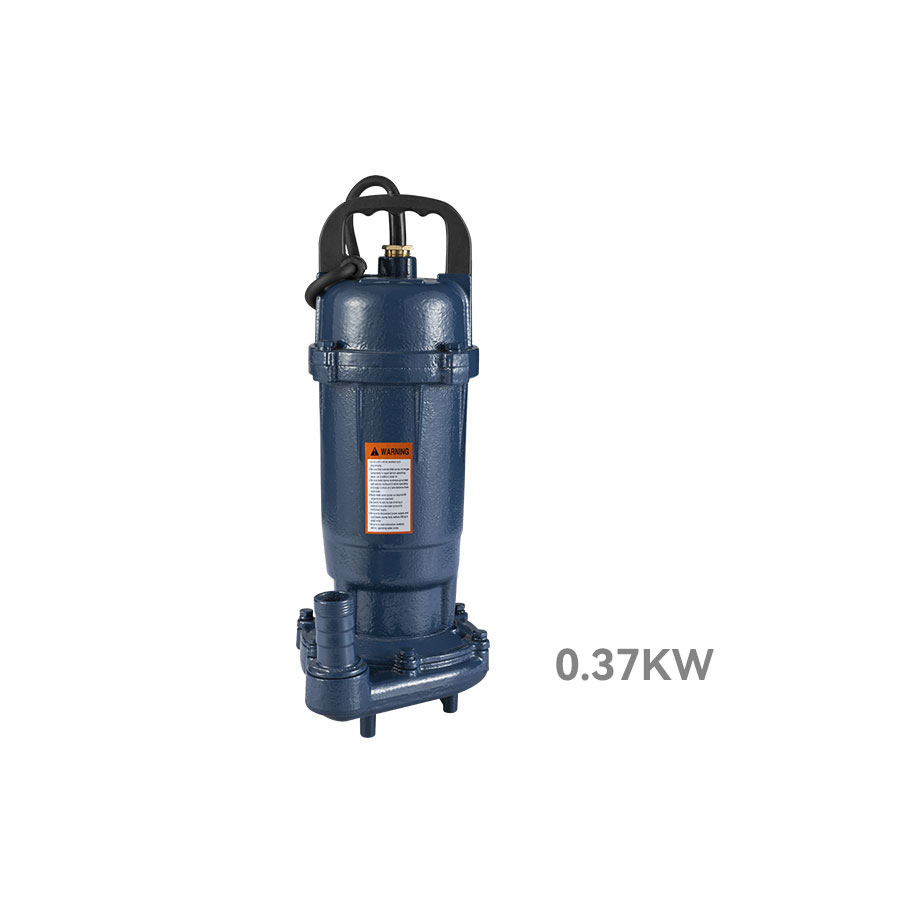

| WQ(D)-370 | 0.37 | 133 | 8 | 1" | 40/32/25 |
| WQ(D)-750 | 0.75 | 166 | 10 | 1" | 40/50 |
| WQ(D)-1100 | 1.1 | 166 | 15 | 2" | 40/50 |

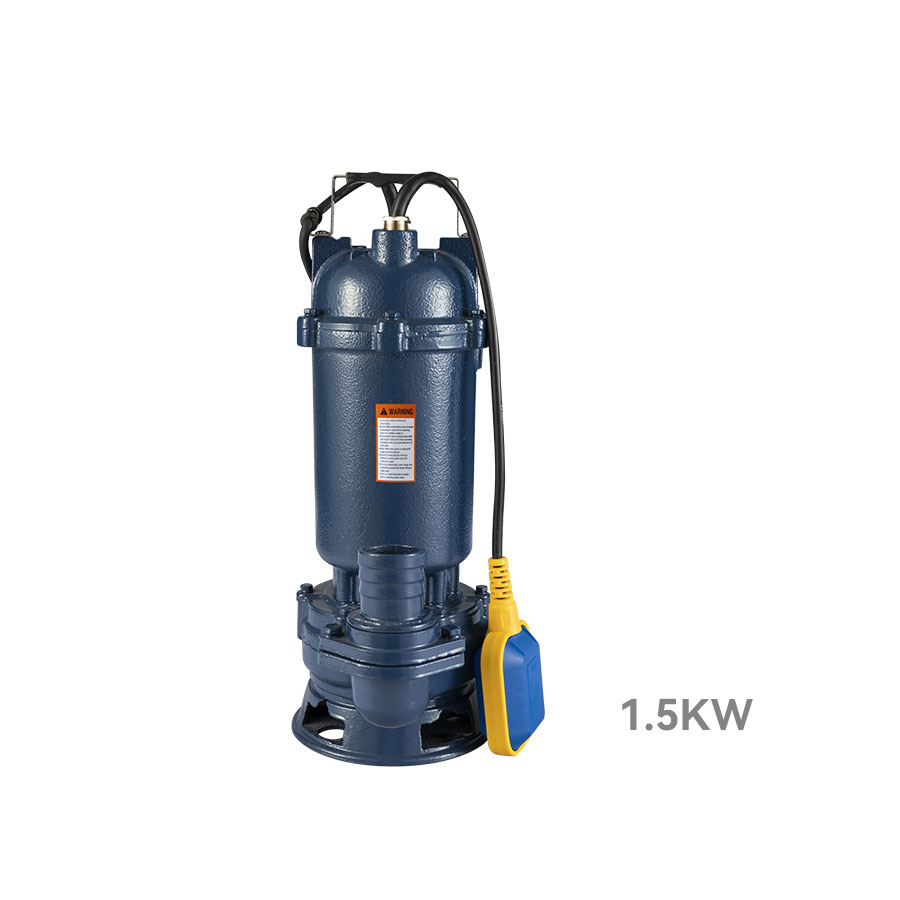

| WQ(D)-1500 | 1.5 | 250 | 15 | 2" | 40/50 |
